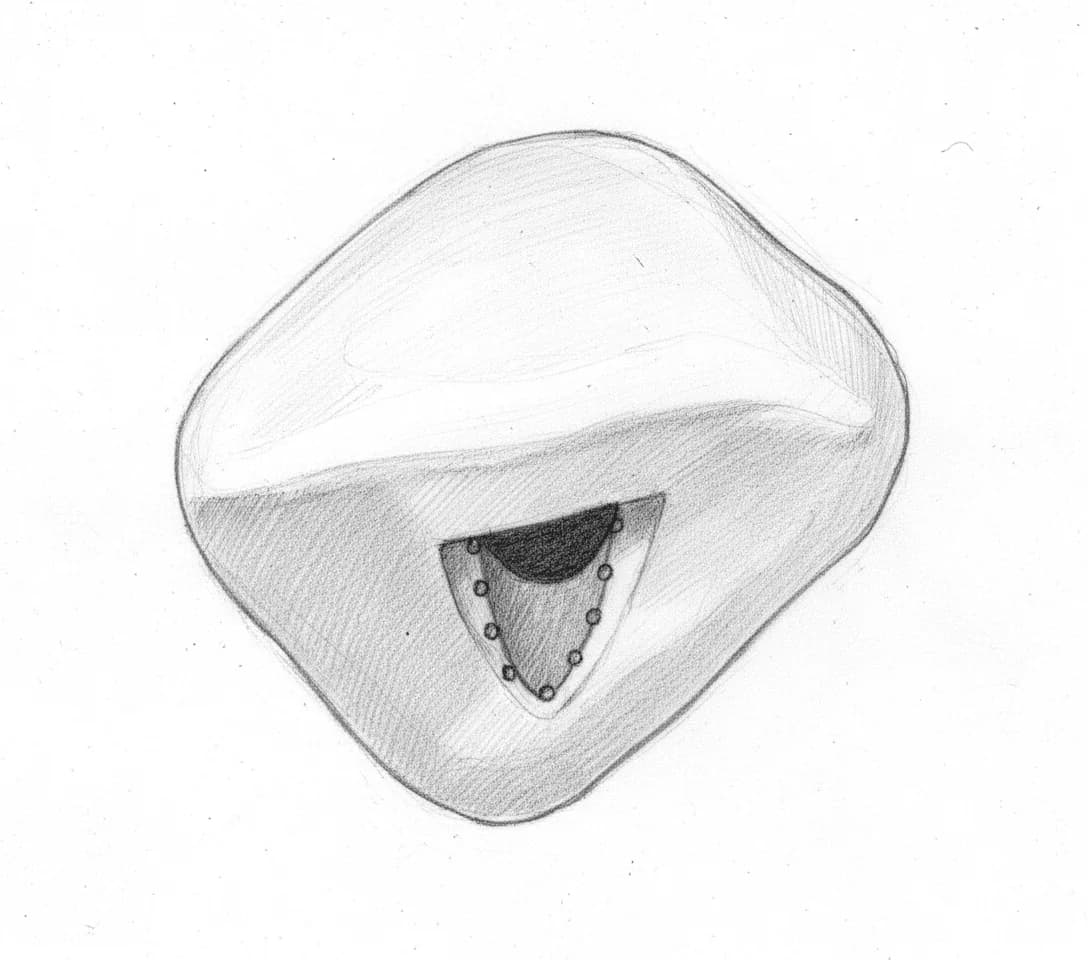

Maxillary lateral incisor — ovoid palatal access cavity with a single canal orifice
Average Length 22.0 mm
Root Development 11 years
Universal # 7, 10
FDI # 12, 22
Access Access Morph. Canal Morphology Risks Clinical Risks Tips Case Tips
Shape Ovoid
Orientation Longer axis oriented labiopalatally; centered slightly toward incisal on palatal surface
Entry Point Palatal surface, just above cingulum
Dimensions M-D: 1.13 mm B-L: 1.39 mm
Landmarks Cingulum as inferior boundary of access Lingual fossa — natural guide for bur placement Do Not Invade Incisal edge (preserve for esthetics and function) Labial wall (esthetic zone — maintain dentin thickness) Configurations Single canal (Vertucci Type I) 80-85%
Two canals merging (Vertucci Type II, 2-1) 10-12%
One-two-one (Vertucci Type III, 1-2-1) 3-5%
Two separate canals (Type IV) or other <3%
Canal Positions MC Main Canal
Ovoid/elliptical cervically, round at mid-root and apex; may bifurcate in middle third
B Buccal Canal
When 2 canals present (Type II/III/IV)
P Palatal Canal
When 2 canals present, often narrower
Danger Zones ⚠ Distopalatal root curvature in apical third — risk of ledging, transportation, or separation⚠ Labial perforation if access directed too far labially⚠ Thin root dentin in mid-root — strip perforation risk with aggressive filingWarning
Distopalatal curvature in apical third in ~58% of teeth — pre-curve files and use flexible NiTi
Warning
Check for dens invaginatus on radiograph before access — most common in this tooth (0.25-10%)
Technique
If file appears off-center on radiograph, suspect bifurcation — take angled radiograph (SLOB rule)
0.25-10% (most common in lateral incisors)
Invagination of enamel organ into tooth structure. Oehlers Type I: confined to crown (most common). Type II: extends past CEJ into root. Type III: communicates with periodontal ligament or apical foramen.
Access Modification: Type I: modified access to debride invagination. Type II/III: may require combined endodontic-surgical approach or intentional replantation
<3% (rare, documented case reports)
Bifurcation of root in middle or apical third with two separate canals and foramina. May have labial and palatal roots.
Access Modification: Extended labiopalatal access to locate both orifices; CBCT for mapping
~2.8%
Conical, undersized crown with simplified root canal anatomy. Usually single small canal.
Access Modification: Smaller access cavity; conservative preparation due to reduced dentin thickness
Shape Ovoid
Orientation Longer axis oriented labiopalatally; centered slightly toward incisal on palatal surface
Entry Point Palatal surface, just above cingulum
Dimensions M-D: 1.13 mm B-L: 1.39 mm
Landmarks Cingulum as inferior boundary of access Lingual fossa — natural guide for bur placement Do Not Invade Incisal edge (preserve for esthetics and function) Labial wall (esthetic zone — maintain dentin thickness) Configurations Single canal (Vertucci Type I) 80-85%
Two canals merging (Vertucci Type II, 2-1) 10-12%
One-two-one (Vertucci Type III, 1-2-1) 3-5%
Two separate canals (Type IV) or other <3%
Canal Positions MC Main Canal
Ovoid/elliptical cervically, round at mid-root and apex; may bifurcate in middle third
B Buccal Canal
When 2 canals present (Type II/III/IV)
P Palatal Canal
When 2 canals present, often narrower
Danger Zones ⚠ Distopalatal root curvature in apical third — risk of ledging, transportation, or separation⚠ Labial perforation if access directed too far labially⚠ Thin root dentin in mid-root — strip perforation risk with aggressive filingWarning
Distopalatal curvature in apical third in ~58% of teeth — pre-curve files and use flexible NiTi
Warning
Check for dens invaginatus on radiograph before access — most common in this tooth (0.25-10%)
Technique
If file appears off-center on radiograph, suspect bifurcation — take angled radiograph (SLOB rule)
0.25-10% (most common in lateral incisors)
Invagination of enamel organ into tooth structure. Oehlers Type I: confined to crown (most common). Type II: extends past CEJ into root. Type III: communicates with periodontal ligament or apical foramen.
Access Modification: Type I: modified access to debride invagination. Type II/III: may require combined endodontic-surgical approach or intentional replantation
<3% (rare, documented case reports)
Bifurcation of root in middle or apical third with two separate canals and foramina. May have labial and palatal roots.
Access Modification: Extended labiopalatal access to locate both orifices; CBCT for mapping
~2.8%
Conical, undersized crown with simplified root canal anatomy. Usually single small canal.
Access Modification: Smaller access cavity; conservative preparation due to reduced dentin thickness
Type Description Prevalence I Single canal (1-1) 80-85% II Two canals merging apically (2-1) 10-12% III One canal splitting and rejoining (1-2-1) 3-5%
0.25-10% (highest prevalence of all teeth)
Invagination of enamel organ creating a tooth-within-a-tooth. Oehlers classification: Type I (crown-confined, most common), Type II (extends past CEJ into root), Type III (extends to apex with separate foramen).
! Type I may be treated with conventional endo. Type II/III often require combined approaches. Pulp necrosis common due to communication between invagination and pulp. CBCT essential for treatment planning.
Up to 67%
Small branching canals from main canal to root surface, predominantly in apical and middle thirds.
! Cannot be instrumented directly. Thorough irrigation with NaOCl is essential. May explain persistent periapical pathology.
Single root Distopalatal (most common) Curvature present in ~58%; mostly moderate (5-20 degrees); primarily in apical third
Apical Foramen Deviation Deviates from radiographic apex in 68-85% of cases; average deviation 0.3-0.52 mm, predominantly in distal direction
Labial wall (during access preparation) Moderate ✓ Direct bur toward palatal during initial access✓ Use paralleling radiograph to assess crown-root angle✓ Smaller root than central — less margin for error
Mid-root concavity (during canal shaping) Moderate ✓ Limit taper to .04 in curved canals✓ Anti-curvature filing away from concavity✓ Use flexible heat-treated NiTi filesLikelihood Moderate in patients >40 years; accelerated after trauma history
Location Pulp chamber and coronal third of canal
Management EDTA gel; small pre-curved hand files (#08, #10); ultrasonic activation; electronic apex locator essential
Ledge or transportation at distopalatal curvature Moderate — curvature present in ~58% of teeth Prevention ✓ Pre-curve hand files for initial negotiation✓ Use flexible NiTi files (Gold, Blue, or CM-wire)✓ Confirm glide path before rotary instrumentationManagement Attempt bypass with small pre-curved file; if ledge persists, consider working length adjustment
Dens invaginatus complication Low overall (0.25-10% have dens invaginatus) Prevention ✓ Pre-op radiograph screening for invagination✓ CBCT if dens invaginatus suspected✓ Plan treatment approach based on Oehlers typeManagement Type I: conventional endo with modified access. Type II/III: combined endo-surgical approach or referral to specialist
Post-treatment discoloration Moderate if pulp horns not fully debrided Prevention ✓ Extend access to all pulp horns✓ Thorough removal of all coronal pulp tissue✓ Intra-orifice barrier 2 mm below CEJManagement Internal bleaching (walking bleach technique)
1 Screen radiograph for dens invaginatus (radiopaque invagination within crown/root)
2 Assess distopalatal curvature on PA — present in ~58% of teeth
3 Check for second canal: if file appears off-center on PA, take angled radiograph
4 Evaluate root length and crown-root angulation for access planning
• Suspected dens invaginatus (Oehlers Type II or III)• Suspected second canal not confirmed on PA• Complex root curvature or dilaceration• Retreatment with persistent pathologyScenario
Standard single canal with mild curvature Any rotary system suitable; .04-.06 taper adequate
Scenario
Moderate-severe distopalatal curvature Flexible heat-treated files (Gold, Blue, or CM-wire) with .04 taper; pre-curve hand files for glide path
Scenario
Dens invaginatus (Type I) Small hand files to explore invagination; ultrasonic tips for debridement; MTA for sealing invagination lumen
Scenario
Two-canal configuration Smaller files (.04 taper, size 20-25) for each canal; careful irrigation protocol
✗ Assuming single canal — ~15-20% have Type II/III configurations
✗ Ignoring distopalatal curvature — leads to ledging or transportation
✗ Missing dens invaginatus on pre-op radiograph
✗ Over-instrumentation in thin root — strip perforation risk
✗ Not using angled radiograph to detect canal bifurcation
► Dens invaginatus Oehlers Type II or III requiring combined approach► Severe root dilaceration► Calcified canal not negotiable after clinical attempt► Previous failed treatment with persistent symptoms► Suspected perforation during access or shaping
