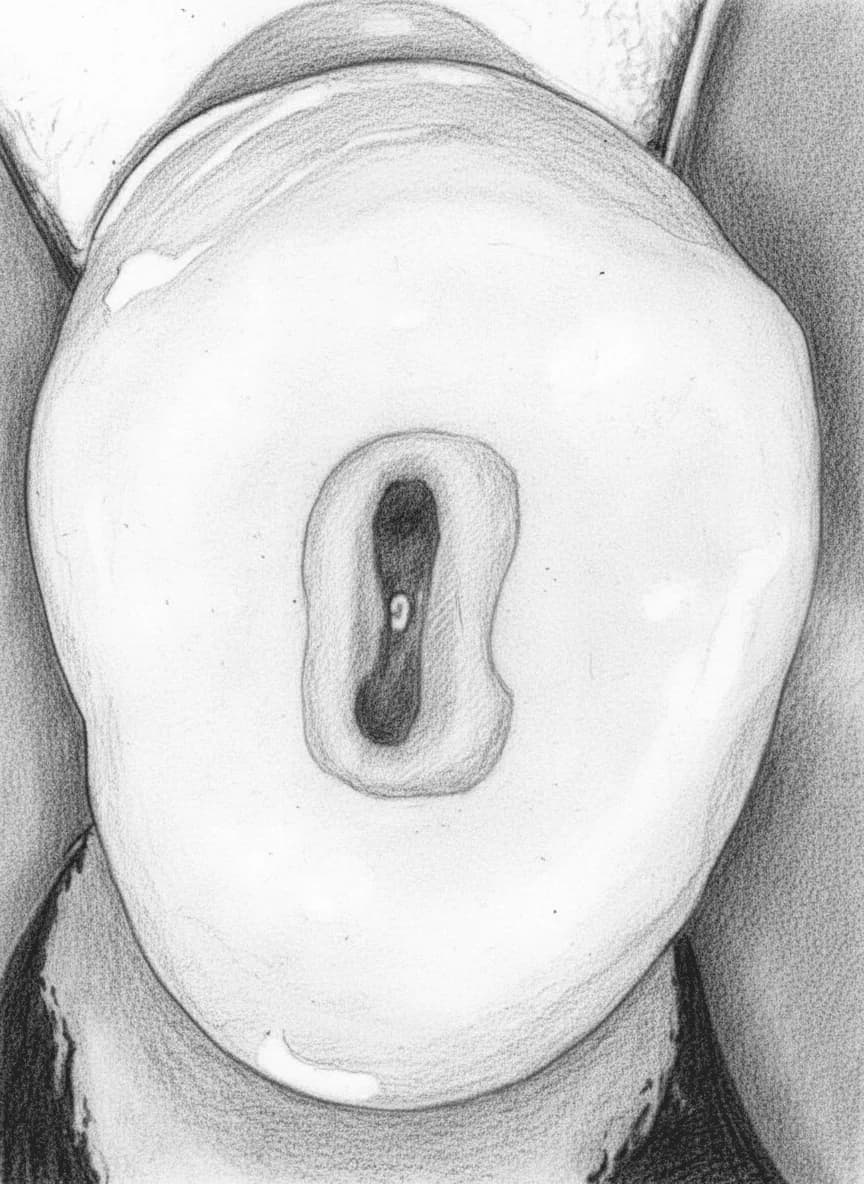

Mandibular first premolar — oval occlusal access with a single slot-shaped canal orifice
Average Length 21.6 mm
Root Development 12-13 years
Universal # 21, 28
FDI # 34, 44
Access Access Morph. Canal Morphology Risks Clinical Risks Tips Case Tips
Shape Oval / Kidney
Orientation Buccolingual; bur directed buccally to compensate for lingual crown tilt
Entry Point Through occlusal surface toward buccal cusp; may require buccal cusp reduction for straight-line access
Landmarks Buccal cusp tip as primary reference for access direction CEJ center on buccal surface — aim bur toward this point Do Not Invade Lingual wall (thin — highest perforation risk zone) Configurations Single canal (Vertucci Type I) 61-76%
Two canals (Vertucci Type II/III/IV/V) 5-24%
Three canals <2%
C-shaped canal system 1-18% (population-dependent)
Canal Positions MC Main Canal
May bifurcate in middle or apical third (~28% bifurcation rate); oval cross-section
B Buccal Canal
When 2 canals present; typically wider and more accessible
L Lingual Canal
When 2 canals present; often narrower and harder to negotiate
Danger Zones ⚠ Lingual perforation — crown tilts lingually relative to root axis; #1 endodontic risk for this tooth⚠ Direct bur buccally toward CEJ center to compensate for lingual crown tilt⚠ Distal root curvature in ~82% — instrument transportation and ledging riskWarning
HIGH lingual perforation risk — crown tilts lingually relative to root; direct bur BUCCALLY toward CEJ center
Warning
Considered one of the most difficult premolars to treat endodontically — variable anatomy + perforation risk
Technique
CBCT valuable for preoperative assessment — especially when radicular groove present or PA shows unusual anatomy
1-18% (higher in Asian populations)
Continuous ribbon-shaped canal in C-configuration. Associated with radicular groove on root surface. Requires modified cleaning and obturation approach.
Access Modification: Oval to kidney-shaped access; circumferential filing for debridement; thermoplasticized obturation preferred
~28%
Single canal bifurcating into buccal and lingual canals in the middle third. Often not visible on straight PA radiograph.
Access Modification: Angled radiograph to confirm bifurcation; explore both walls with small pre-curved files
<2%
Rare variant with three separate canals. Case reports document three-rooted specimens.
Access Modification: CBCT mandatory for mapping; extended access to locate all orifices; microscope recommended
Shape Oval / Kidney
Orientation Buccolingual; bur directed buccally to compensate for lingual crown tilt
Entry Point Through occlusal surface toward buccal cusp; may require buccal cusp reduction for straight-line access
Landmarks Buccal cusp tip as primary reference for access direction CEJ center on buccal surface — aim bur toward this point Do Not Invade Lingual wall (thin — highest perforation risk zone) Configurations Single canal (Vertucci Type I) 61-76%
Two canals (Vertucci Type II/III/IV/V) 5-24%
Three canals <2%
C-shaped canal system 1-18% (population-dependent)
Canal Positions MC Main Canal
May bifurcate in middle or apical third (~28% bifurcation rate); oval cross-section
B Buccal Canal
When 2 canals present; typically wider and more accessible
L Lingual Canal
When 2 canals present; often narrower and harder to negotiate
Danger Zones ⚠ Lingual perforation — crown tilts lingually relative to root axis; #1 endodontic risk for this tooth⚠ Direct bur buccally toward CEJ center to compensate for lingual crown tilt⚠ Distal root curvature in ~82% — instrument transportation and ledging riskWarning
HIGH lingual perforation risk — crown tilts lingually relative to root; direct bur BUCCALLY toward CEJ center
Warning
Considered one of the most difficult premolars to treat endodontically — variable anatomy + perforation risk
Technique
CBCT valuable for preoperative assessment — especially when radicular groove present or PA shows unusual anatomy
1-18% (higher in Asian populations)
Continuous ribbon-shaped canal in C-configuration. Associated with radicular groove on root surface. Requires modified cleaning and obturation approach.
Access Modification: Oval to kidney-shaped access; circumferential filing for debridement; thermoplasticized obturation preferred
~28%
Single canal bifurcating into buccal and lingual canals in the middle third. Often not visible on straight PA radiograph.
Access Modification: Angled radiograph to confirm bifurcation; explore both walls with small pre-curved files
<2%
Rare variant with three separate canals. Case reports document three-rooted specimens.
Access Modification: CBCT mandatory for mapping; extended access to locate all orifices; microscope recommended
Type Description Prevalence I Single canal (1-1) 61-76% V One canal splitting into two (1-2) 5-15% (most common multi-canal type) III One-two-one (1-2-1) 3-8% IV Two separate canals (2-2) 1-5%
1-18% (higher in Asian populations)
Continuous ribbon-shaped canal associated with radicular groove. Cross-section shows C or semicircular shape.
! Requires circumferential filing — standard rotary alone inadequate. Thermoplasticized obturation for 3D seal. CBCT for preoperative diagnosis.
Present in all mandibular first premolars
Crown axis tilts lingually relative to root axis. This anatomical feature creates the #1 endodontic risk — lingual perforation during access.
! Direct bur buccally toward CEJ center, NOT perpendicular to occlusal surface. Use rubber dam clamp as orientation reference.
Single root Distal (predominant) ~82% have distal curvature; moderate to severe in many cases; complicates instrumentation
Apical Foramen Deviation Deviates in 70-88% of cases; predominantly lateral or distal direction
Lingual wall (during access — #1 risk for this tooth) High ✓ Direct bur buccally toward CEJ center✓ Reduce buccal cusp for straight-line access if needed✓ Use paralleling radiograph to verify bur angulation✓ Awareness of lingual crown tilt — the most common access errorLikelihood Moderate in patients >40 years
Location Pulp chamber and canal orifice
Management Ultrasonic tips for controlled dentin removal; EDTA gel; small pre-curved files; buccal approach essential even when calcified
Lingual perforation during access High — most common procedural error for this tooth Prevention ✓ Direct bur buccally toward CEJ center✓ Buccal cusp reduction for straight-line access✓ Paralleling radiograph to verify angulation✓ Avoid perpendicular-to-occlusal bur directionManagement MTA or bioceramic repair immediately if detected; prognosis depends on location and size
Missed bifurcation (canal splits in middle third) Moderate (~28% have bifurcation) Prevention ✓ Angled radiograph to detect bifurcation✓ If file appears off-center, explore for second canal✓ NaOCl bubble test at suspected bifurcation pointManagement Re-entry with exploration of both buccal and lingual walls
Ledge or transportation (distal curvature) Moderate — ~82% have distal root curvature Prevention ✓ Pre-curve hand files for initial negotiation✓ Flexible NiTi files for shaping✓ Confirm glide path before rotaryManagement Attempt bypass with small pre-curved file; adjust WL if necessary
1 Assess crown-root angulation on PA — plan buccal bur direction to avoid lingual perforation
2 Check for radicular groove on clinical exam — suggests C-shaped anatomy
3 Angled radiograph to detect canal bifurcation (not visible on straight PA)
4 Consider patient ethnicity: Asian = higher C-shaped canal prevalence
• Suspected C-shaped canal (radicular groove present)• Unusual canal configuration not assessable on PA• Previous failed treatment with persistent pathology• Suspected lingual perforation during accessScenario
Standard single canal Any rotary system with .04-.06 taper; maintain buccal approach throughout; monitor for bifurcation
Scenario
Bifurcated canal (middle third) Small flexible files (15-20/.04) for each canal after bifurcation; hand files may be needed in tight lingual canal
Scenario
C-shaped canal system Circumferential filing; ultrasonic-activated irrigation; thermoplasticized obturation (warm vertical or carrier-based)
Scenario
Severe distal root curvature Flexible heat-treated files (Gold, Blue, CM-wire) with .04 taper; pre-curve hand files for glide path
✗ Lingual perforation — directing bur perpendicular to occlusal instead of buccally
✗ Missing canal bifurcation in middle third — not using angled radiograph
✗ Assuming simple anatomy — this is one of the most unpredictable premolars
✗ Ignoring distal root curvature (~82%) — leads to ledging or transportation
✗ Not recognizing C-shaped canal on pre-op assessment
► Suspected C-shaped canal requiring specialized instrumentation► Lingual perforation during access► Complex multi-canal anatomy not manageable without microscope► Calcified canal not negotiable clinically► Three-canal/root variant
