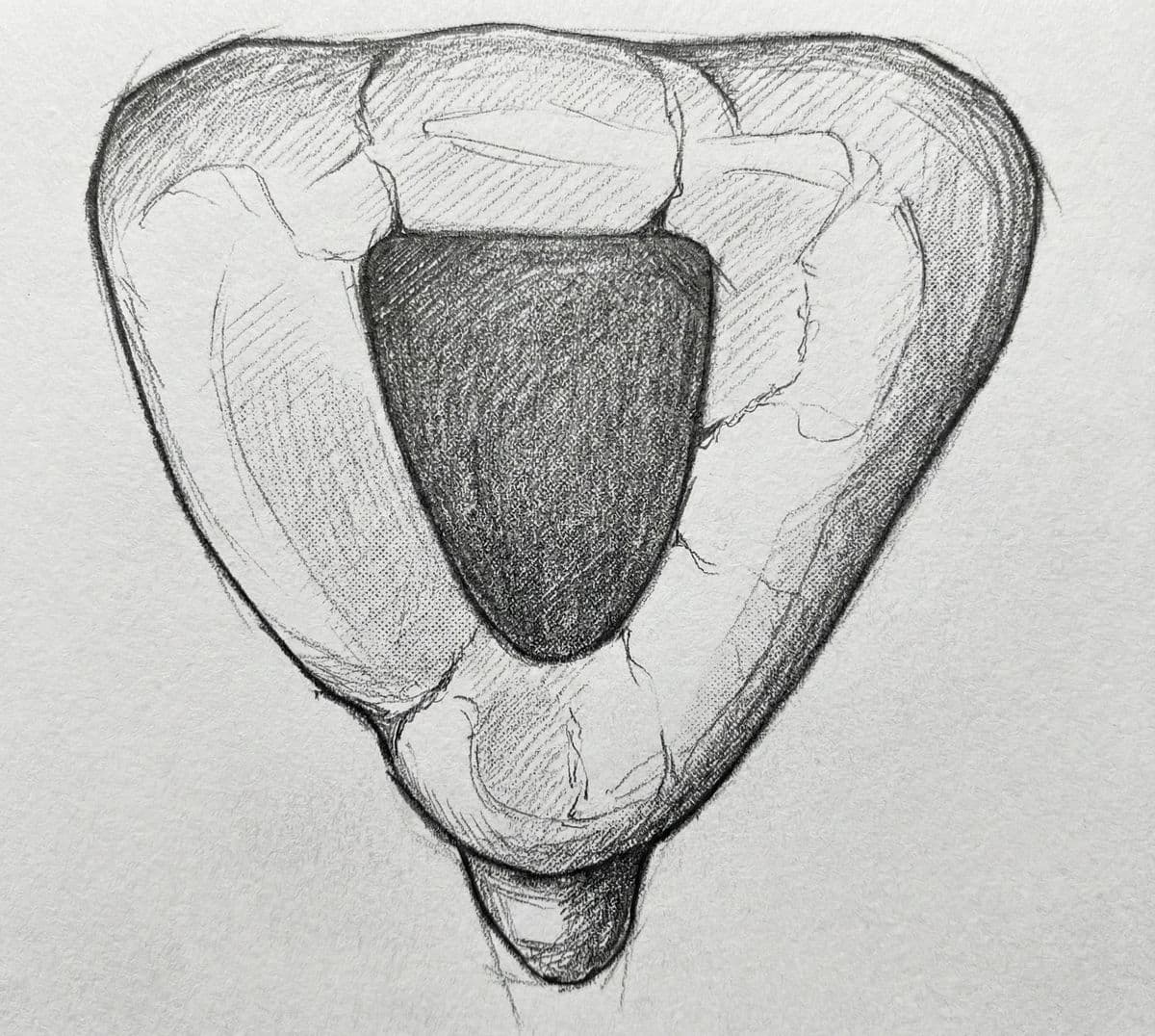

Maxillary central incisor — triangular palatal access cavity with a single canal orifice
Average Length 23.0 mm
Root Development 10 years
Universal # 8, 9
FDI # 11, 21
Access Access Morph. Canal Morphology Risks Clinical Risks Tips Case Tips
Shape Triangular / Round
Orientation Base toward incisal edge, apex toward cingulum; centered on palatal surface
Entry Point Center of palatal surface, just above cingulum
Dimensions M-D: 1.54 mm B-L: 1.51 mm
Landmarks Pulp horns (typically 3 in young teeth — mesial, distal, central) Cingulum as inferior boundary of access Do Not Invade Incisal edge (preserve for esthetics and function) Labial wall (esthetic zone — maintain dentin thickness) Configurations Single canal ~100%
Two canals (rare case reports) <1%
Canal Positions MC Main Canal
Central, round/circular cross-section at all levels; wide at cervical, progressively constricts toward apex
Danger Zones ⚠ Labial perforation risk if bur directed too far labially during access⚠ Proximity to incisive canal/foramen in palatal root apex regionTip
Extend access incisally to expose all pulp horns — prevents discoloration from residual pulp tissue
Tip
Pulp chamber is shallow — minimal drop-in feeling expected
Tip
More than 1/3 of canal is directly visible — ideal for beginners
Technique
Consider conservative endodontic cavity (CEC) in structurally sound teeth to improve fracture resistance
<1% (rare case reports)
Extremely rare bifurcation of root or canal system, documented in isolated case reports. May be associated with developmental anomalies or trauma history.
Access Modification: Extended access to locate both orifices; CBCT recommended for mapping anatomy
Shape Triangular / Round
Orientation Base toward incisal edge, apex toward cingulum; centered on palatal surface
Entry Point Center of palatal surface, just above cingulum
Dimensions M-D: 1.54 mm B-L: 1.51 mm
Landmarks Pulp horns (typically 3 in young teeth — mesial, distal, central) Cingulum as inferior boundary of access Do Not Invade Incisal edge (preserve for esthetics and function) Labial wall (esthetic zone — maintain dentin thickness) Configurations Single canal ~100%
Two canals (rare case reports) <1%
Canal Positions MC Main Canal
Central, round/circular cross-section at all levels; wide at cervical, progressively constricts toward apex
Danger Zones ⚠ Labial perforation risk if bur directed too far labially during access⚠ Proximity to incisive canal/foramen in palatal root apex regionTip
Extend access incisally to expose all pulp horns — prevents discoloration from residual pulp tissue
Tip
Pulp chamber is shallow — minimal drop-in feeling expected
Tip
More than 1/3 of canal is directly visible — ideal for beginners
Technique
Consider conservative endodontic cavity (CEC) in structurally sound teeth to improve fracture resistance
<1% (rare case reports)
Extremely rare bifurcation of root or canal system, documented in isolated case reports. May be associated with developmental anomalies or trauma history.
Access Modification: Extended access to locate both orifices; CBCT recommended for mapping anatomy
Type Description Prevalence I Single canal (1-1) ~98-100%
24-60% (typically ~40-50%)
Small branching canals from main canal to root surface, most common in apical third and middle third.
! Cannot be instrumented directly. Thorough irrigation with NaOCl is essential for debridement. May explain persistent periapical pathology after apparently adequate treatment.
Single root Straight (majority), labial or palatal (minority) Straight: ~75%; Mild curvature: ~17%; Moderate: rare
Apical Foramen Deviation Deviates from radiographic apex in 63-68% of cases; average deviation 0.5 mm (0.53 +/- 0.28 mm)
Labial wall (during access preparation) Moderate ✓ Direct bur slightly toward palatal during initial penetration✓ Use paralleling radiograph to assess crown-root angulation✓ Maintain awareness of labial dentin thicknessLikelihood Common in patients >50 years, especially after trauma history
Location Pulp chamber and coronal third of canal
Management EDTA gel; small pre-curved hand files (#08, #10); electronic apex locator essential when WL radiograph is difficult
Labial perforation Low-moderate (common beginner error) Prevention ✓ Angle bur toward palatal during access✓ Use rubber dam clamp as orientation reference✓ Pre-operative radiograph to assess root angulationManagement MTA or bioceramic repair if detected; monitor with follow-up radiographs
Post-treatment discoloration Moderate if pulp horns not fully debrided Prevention ✓ Extend access to all pulp horns✓ Remove all coronal pulp tissue thoroughly✓ Place intra-orifice barrier (composite or GIC) 2 mm below CEJManagement Internal bleaching (walking bleach technique) if discoloration occurs
1 Assess root length on pre-op PA (longer than expected at 23 mm average)
2 Check for root curvature in apical third on PA
3 Evaluate pulp chamber size — may be calcified in older/trauma patients
4 Note crown angulation relative to root for access direction planning
• Suspected rare 2-canal/2-root anatomy• Previous trauma with suspected root resorption• Calcified canal not negotiable after clinical attempt• Persistent periapical pathology after previous treatmentScenario
Standard single canal (majority of cases) Any rotary system suitable; .04-.06 taper provides adequate cleaning and shaping
Scenario
Calcified canal in older patient Manual negotiation with #08/#10 K-files first; PathFile or ProGlider for mechanical glide path
Scenario
Wide canal in young patient May need larger apical preparation (size 40+) for adequate taper and seal
✗ Access too far labially — leads to labial perforation
✗ Incomplete removal of pulp horns — causes post-op discoloration
✗ Over-reliance on radiographic apex for WL — foramen deviates in ~65% of cases
✗ Neglecting to check for accessory canals during obturation
► Calcified canal not negotiable after reasonable clinical attempt► Suspected perforation during access► Complex periapical surgery needed for lateral canal pathology► Previous failed treatment with persistent symptoms
