NIC® W+
NIC Dental (Shenzhen Superline Technology)
NIC® W+
NIC Dental (Shenzhen Superline Technology)

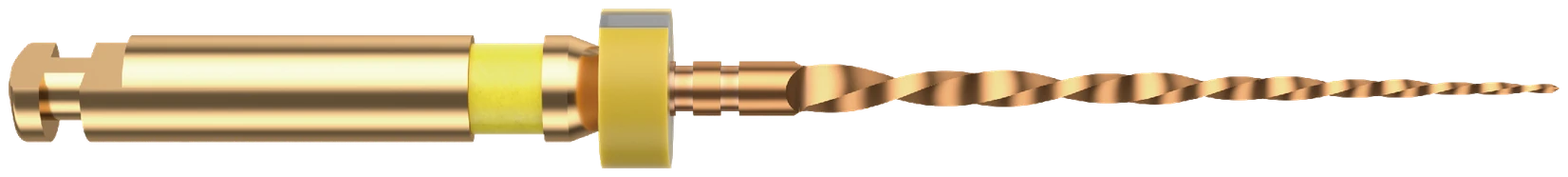

Single-file reciprocating shaping on a WaveOne Gold-compatible 150°/30° program — four parallelogram shapers (20/.07 to 45/.05) plus a W+ Tunnel 15/.02 glide path file
Reciprocating · MaxTech 3.0 Gold Heat-Treated NiTi
- ccw / cw
- File
- 5
- Verified
Specifications
Tap icons for term definitions
150° / 30°ccw / cw
| File | Tip | Taper | Motion | Role |
|---|---|---|---|---|
Diameter at the file tip (D0). Larger tips shape wider canals. | ||||
How much the file widens per mm. Higher taper = more aggressive cutting. | ||||
W+ Tunnelwhite | 0.15 | 2% | 150° / 30° | Glide path |
yellow | 0.20 | 7% | 150° / 30° | Shaping |
red | 0.25 | 7% | 150° / 30° | Shaping |
green | 0.35 | 6% | 150° / 30° | Shaping |
white | 0.45 | 5% | 150° / 30° | Shaping |
Matching gutta-percha & paper points
- Gutta-percha
- NIC W+ series gutta-percha points20, 25, 35, 45
- Paper points
- NIC W+ series absorbent paper points20, 25, 35, 45
Clinical Tips
- Motor programming per the IFU: use a WaveOne Gold-compatible reciprocating program, or enter 150° counter-clockwise / 30° clockwise where custom angles are required; speed and torque are defined by the program
- The technique is Primary-first: the 25/.07 red file starts every case, the Small 20/.07 is the fallback for canals it cannot enter, and the Medium 35/.06 / Large 45/.05 serve wider canals (IFU)
- Completion is judged at the apical flutes — dentinal debris loading after reaching length signals the shape is complete (IFU)
- The W+ Tunnel 15/.02 is the system's own reciprocating glide path file; NIC's cross-reference table maps it to reciprocating glide path files and W+ itself to WaveOne Gold — manufacturer-claimed correspondences, not independently verified
- MaxTech 3.0 gold heat treatment: the manufacturer describes improved flexibility over standard NiTi with a gold surface appearance, positioned for conventional curvature (~15°)
- All five files — the four shapers and the W+ Tunnel — use a parallelogram cross-section per the manufacturer's fact sheet (2026-08-12); the construction pages describe 13 mm short shanks, ISO color coding, and a 1.2 mm maximum flute diameter for the line
- Due to heat treatment the file may appear slightly curved out of the package — the manufacturer states this is not a defect and no straightening is needed (IFU)
- Do not fully immerse the files in sodium hypochlorite solution (IFU)
- Specifications on this page come from the manufacturer's consolidated fact sheet (2026-08-12, the controlling source), IFU draft (2026), and 2025 catalog; no independent peer-reviewed performance data exists for this system (PubMed, 2026-08-11)
Warnings
- Single-use only per the manufacturer's IFU — reuse may increase the risk of cross-contamination, loss of cutting efficiency, or file separation
- Supplied non-sterile in this version: sterilize before first clinical use (steam autoclave 134 °C, 18 min holding time per the IFU) and discard after the procedure
- Use only in reciprocating motion — the IFU directs against continuous rotary motion for these files
- Do not use a file from a damaged package, or any instrument showing deformation, unwinding, corrosion, fracture, or wear (IFU)
- Avoid apical pressure: use a gentle inward pecking motion with short strokes and let the file advance passively (IFU)
- Contains nickel — the IFU contraindicates use in patients with known nickel/NiTi allergic sensitivity
- The IFU contraindicates mechanical use in canals with severe, sudden apical curvatures, complex canal divisions, or anatomy where safe passive file progression cannot be achieved
Obturation Techniques
Single cone, warm vertical, carrier-based & lateral compaction
Protocol
01Glide Path2
02Shaping2
03Finishing2
Related Systems
From NIC Dental Systems
Manufacturer page
NIC Dental SystemsOther reciprocating systems
Motion category
Reciprocating MotionComparisons
Alloy
Gold Heat TreatmentCollections
Clinical guides
Frequently Asked Questions
What alloy is NIC W+ made from?
What alloy is NIC W+ made from?
Answer
NIC® W+ is manufactured from MaxTech 3.0 Gold Heat-Treated NiTi.
How many files are in the NIC W+ sequence?
How many files are in the NIC W+ sequence?
Answer
The NIC® W+ system includes 5 files: W+ Tunnel, Small, Primary, Medium, Large.
What is the NIC W+ file sequence?
What is the NIC W+ file sequence?
Answer
NIC® W+ offers these files: W+ Tunnel, Small, Primary, Medium, Large.
- One shaping file is selected per canal; the protocol section above shows the starting file.
What motion type does NIC W+ use?
What motion type does NIC W+ use?
Answer
NIC® W+ uses reciprocating motion.
What cases is NIC W+ best for?
What cases is NIC W+ best for?
Answer
NIC® W+ is best suited for: single-file reciprocating shaping, Primary-first technique with Small fallback, included reciprocating glide path file.
What speed and torque settings are recommended for NIC W+?
What speed and torque settings are recommended for NIC W+?
Answer
NIC® W+ uses reciprocating motion with manufacturer-specific motor settings (refer to official DFU for exact parameters).
